Detailed Product Description

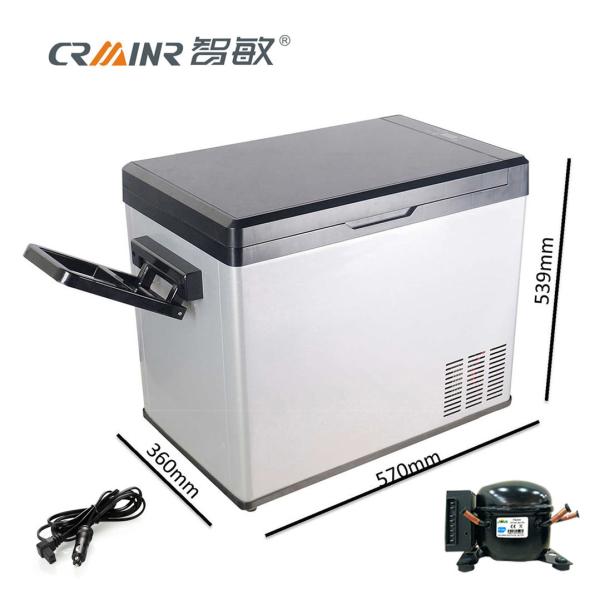

Car Refrigerator Freezer for Camping, Fishing, Boat, Cars, Trucks, Yacht, ect

Features

1. We always use highly efficient and energy-saving DC compressor in our car refrigerator. This compressor ensures the car refrigerator with high reliability, energy saving, long service life and fast cooling speed;

2. Our machine can be used in the car (12V/24V), at home (110-220V power with an optional part of AC/DC adapter) and also outdoors where the machine is connected to 12V battery (optional part for a special wire) directly.

3. Our compressor cools the refrigerator as low as -20℃ rapidly (ambient temperature is 25 ℃);

4. Intelligent control system with power-off memory function is designed in the car refrigerator;

5. The special car battery intelligent protection system protects the car battery from breakage;

6. The unique power supply protection function protects the compressor from wrong button of the positive and negative;

Functions and Operations

Power supply and electrical: the refrigerator can be used for DC voltage 12V in the car [as photo 1, the car plug]; and can be connected to 12V/24V battery [as photo 2, the battery connector, which is selective part and to be paid separately]; and can be used at household AC 100-240V [as photo 3, as the power adapter, which is selective part and to be paid separately]. And there is extra battery for standby which is selective part and to be paid separately.


Photo 1 Photo 2 Photo 3

* Note: The car plug (photo 1) is included in the refrigerator. And the parts in photo 2, photo 3 and extra battery for standby are all selective parts to be paid separately.

The three voltage parameters as below:

H3 (high): 10.9V (stop) --12.2V (start voltage)
23.8V (stop) --25.2V (start voltage)
H2 (medium): 9.7V (stop) --11.0V (start voltage)
21.5V (stop) --22.9V (start voltage)
H1 (low): 9.6V (stop) --10.9V (start voltage)
21.3V (stop) --22.7V (start voltage)

Microcomputer control panel diagram:

Common temperature setting

• Red wine storage (10℃),

•Vaccine, Insulin (2℃- 8℃),

•Fruit (4℃- 6℃),

•Beverage (2℃-5℃),

•Meat (-10℃),

•Ice cream (-15℃);

Please be careful if you want to store drugs in the refrigerator.

Parameters Table

Detailed Specification table

Our Certificates



Our Production pictures

Our Exhibitions

Our warehouse

How to contact us

Established in 2004 and located in China hometown of home appliance Equipment-Fuhai town industrial park, cixi, Ningbo, Zhejiang Province. The company covers a total area of 4000 square meters and a building area of 12000 square meters.

The company is a professional manufacturer of DC inverted frequency compressor, solar refrigerator & freezer, solar water filter, solar electric fan and so on. The company integrates with designing, production and trading. With the principle of high start point, high standards, and supper quality, the company has sold its product and been well-known in domestic and oversea market.

The company has established two technology research centers, and attracted many first class engineers, most of them are well-recognized engineers in the industry in China. The company is forging ahead with determination and keeps an alert eye on the future of the industry. The company has been made all the efforts in establishing the biggest production base of DC home appliance in China. It’s no doubt that the highlighted products are the self-developed of DC inverted frequency outer rotor compressor and solar refrigerator &freezer of cost-effective. It is a big step toward our company’s goal.

The company is willing to treat every customer on basis of honesty, equality and mutual benefit, and to continue to provide its customers with qualified products and good service. Every customer is welcome to enquire and visit our company in your convenience.
