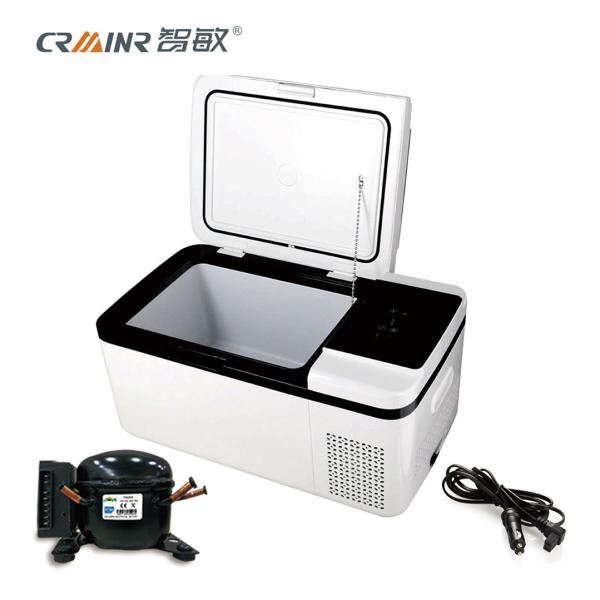

12V car fridge for car DC portable mini car refrigerator freezer with digital thermostat

Description of our products

1. The use of new refrigeration technology makes possibility of minimum temperature at -40 ℃ per laboratory data (the refrigeration program needs to be customized);

2. Our compressor cools the refrigerator as low as -20℃ rapidly (ambient temperature is 25 ℃);

3. The unique power supply protection function protects the compressor from wrong button of the positive and negative;

4. Our machine can be used in the car (12V/24V), at home (110-220V power with an optional part of AC/DC adapter) and also outdoors where the machine is connected to 12V battery (optional part for a special wire) directly.

5. We use excellent polyurethane insulation layer and thermal insulation to make sure low energy consumption of the machine;

6. Our car refrigerators are used for camping & outdoors, motor homes, RV, caravan, truck, automotive, boat, marine and home.

7. The special car battery intelligent protection system protects the car battery from breakage;

Precautions

1. After the refrigerator is unpacked, please leave it upright for more than 6 hours before you connect it with electricity.

2. The refrigerator should be placed horizontally during work. If there is an angle for a long time tilt work, the angle should be less than 5 degree; and if for a short time tilt work, the angle should be less than 45 degree.

3. The refrigerator should be ventilated well so as to dissipate heat. The recommended space for the back is more than 200mm and for the sides are more than 100mm.

4. The refrigerator should be away from the heat source and direct sunlight.

5. The refrigerator should be placed in the car or on the floor horizontally and stably.

6. Use dry towels to absorb the remaining water from condensation. Never reverse or tilt the refrigerator to pour the remaining water. Dry the refrigerator if it gets wet by rain. Do not soak the refrigerator in water

7. For refrigerator with a trolley handle, it is prohibited to move it if the electricity is on. It is not recommended to move it if the floor is not smooth. 8. Do not use it if the refrigerator is tilted. If the refrigerator is drawn to a place for use, please leave it upright for 10 minutes before use.

Operations for LCD touch screen

--ON/OFF button: Connect the refrigerator to the power supply and press the ON/OFF button once, and the display will be on to show the environmental temperature. It is recommended to switch on the cooling after the 3-minute delay protection. Press the ON/OFF button again, the refrigerator will be off.

--After you press ON/OFF button, you can set the temperature range from -25℃ to 20℃. Short press "+" and "-" button, or long press "+" and "-" button to adjust the temperature.

-- Long press SET button for 3 seconds and enter advanced parameter mode:

Voltage protection mode:

The machine has three battery protection functions, which protect the normal operation of the refrigerator and protect the battery of the vehicle. The three functions are H3 (high), H2 (medium) and H1 (low). Short press "+" or "-" button to choose the function. The function is set at "H2" (medium) protection when the refrigerator is finished at the factory.

It is recommended to set the battery protection at H2 (medium) when it is used in the car.

It is recommended to set the battery protection at H2 (medium) or H1 (low) if it is external battery or backup battery.

Because of the difference in voltage output from different vehicle power supply output, if there is voltage protection (display screen shows F1), the battery function could be reduced to a lower one (H3 is adjusted to H2 or H1).

If to use the refrigerator after the car engine runs out of fire, please adjust the battery protection at H3 (high). Otherwise, there may be a situation where the battery power of the car is too much consumed to start the vehicle.

The three voltage parameters as below:

H3 (high): 10.9V (stop) --12.2V (start voltage)
23.8V (stop) --25.2V (start voltage)
H2 (medium): 9.7V (stop) --11.0V (start voltage)
21.5V (stop) --22.9V (start voltage)
H1 (low): 9.6V (stop) --10.9V (start voltage)
21.3V (stop) --22.7V (start voltage)

Common temperature setting

• Red wine storage (10℃),

•Vaccine, Insulin (2℃- 8℃),

•Fruit (4℃- 6℃),

•Beverage (2℃-5℃),

•Meat (-10℃),

•Ice cream (-15℃);

Please be careful if you want to store drugs in the refrigerator.

Specification

Parameter Table

LCD touch sreen with digital thermostat

Packing and Transportation

1. We usually ship the goods by sea in full container of 20ft or 40HQ which is considerate for the safety.

2. Our goods are all in cartons with foam protection

3. For sample shipment, we will add the wooden case in case of breakage
